Jual DRUM Gardner Denver Oil Free Screw Dry Bulk Air Compressors XK-18 UK for 6×2 and 6×4 Chassis – Jakarta, Indonesia
The XK-18 is a robust, high flow, oil-free, contactless, low maintenance screw compressor designed for the contaminant free discharge of a wide range of product types including granular, pellet, random particle products at 1 – 1.5 bar g (e.g. sugar, plastic granules and animal feeds) with a higher pressure availability.

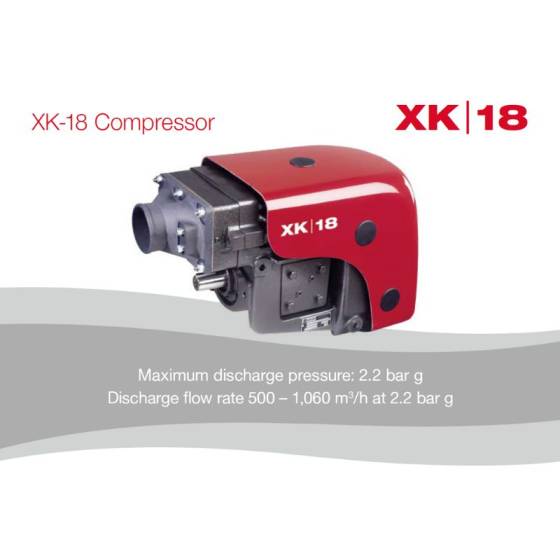

Maximum discharge pressure: 2.2 bar g
Discharge flow rate 500 – 1,060 m3/h at 2.2 bar g
Weight X-K18: 127 kg
Dimension X-K18: 642 x 296 x 398 mm
Specification:
General design

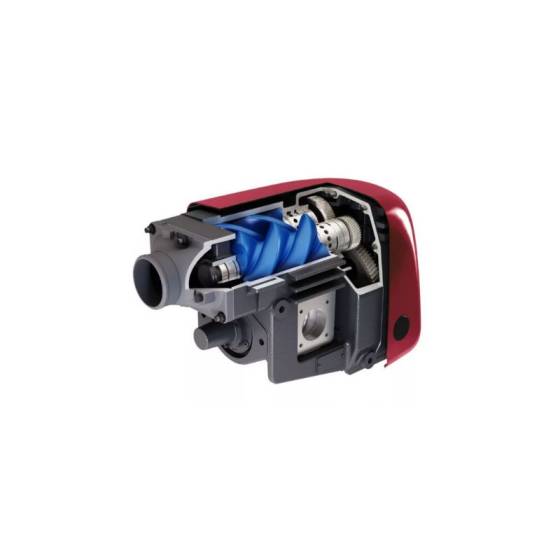

The XK-18 is an oil free screw compressor comprising
synchronised screw rotors, combined main body step up
gearcase assembly and inlet bearing carrier.
Mounting:
The compact shape and size of the XK-18 make it ideal for
mounting inside the chassis on most vehicles to enable low
cost direct PTO driving.
A through shaft allows CW or ACW input drive rotation with
mounting points on either side of the machine to provide
further flexibility.
Drive Options:
Prop. shaft drive: Direct from a vehicle PTO
Hydraulic drive: Several drives can be offered
depending on the application
Electric motor: Packages on base frames utilising
the high input speed variant
Engine drive: Packages on base frames utilising
the high input speed variant
