Deskripsi

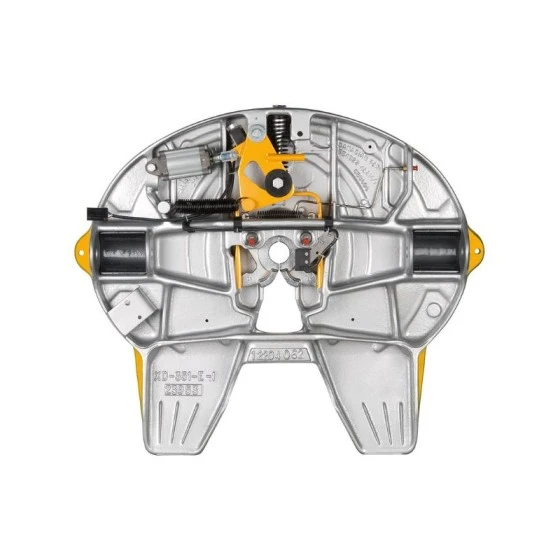

Jual Holland Fifth Wheel FW3510-TR di Jakarta, Indonesia
Part Number: FW3510-TR
Weight: 120 kg
GCW: 100000 kg
Vertical Load: 36000 kg
Max. Speed: 35 km/h
est. dimension: 978 x 827 x 230 mm
Lock size: 2″
Imposed Load: 36,000 kg (23,000 kg when used in public road traffic)
D-Value: 175 kN
ECE Test no.: E11 55R-01 6172 – with manual locking in public road traffic
FEATURES
- High strength cast steel construction – permitted operating temperature to – 40 degrees C
- Top surface machined to improve wear, steering and fit with Trailer Plate. Patented grease groove pattern for improved wear and durability and prepared for central lubrication system
- Air operated lock release mechanism
- Locks require only 140 kg to couple
- Available with brackets for electronic sensors to indicate locks closed
The proven 36 t cast steel fifth wheel HOLLAND FW3510-TR with pneumatic operation is a special development for terminal tractors.
The HOLLAND FW3510-TR fifth wheel is designed for heavy-duty use on terminal tractors and is in continuous operation around the clock in ports and cargo terminals around the world.
The main features are:
- Cast from high quality steel
- Designed for high imposed loads and a long service life
- Approved for forced steering
- Optional with electrical sensor monitoring for the locking system
Optional with additional manual locking for use in public road traffic
- The load limits given are valid for operation with speed limited to 35 km/h maximum and for use on well maintained roadways and yards within distribution depots and dockyard areas.
- Specification with optional manual secondary lock for operation on public roads.
- The versions without additional securing have a permissible total towing weight of 100,000 kg.
